Bullhead track

Joint Sleepers -

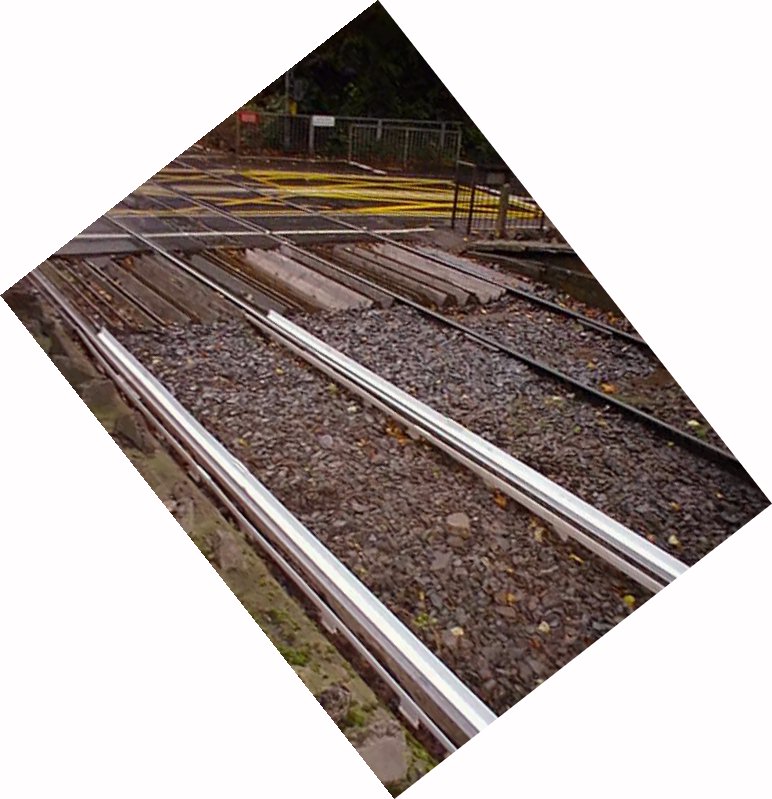

Following discussion on the use of wide sleepers and chairs at joints these pictures were taken on LUL's Central line. The first 3 show joints with wide sleepers clearly showing the wide chairs, the final picture shows an adjacent joint with normal sleepers.
A selection of chairs for Bullhead rail  followed by some rail joints

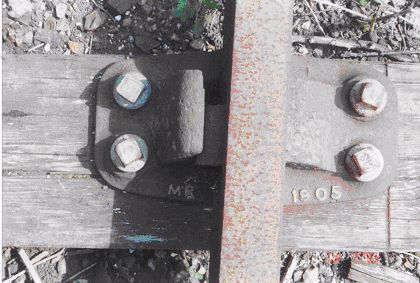

Joint with 12" timbers and wide joint chairs

WR through bolted chair for 95lb BH rail.

David Munn, March 2005
chair

Joint with 12" timbers and wide joint chairs

OOT chair for use with 97 lb BH rail, has larger squarer jaws than the standard AS1 chair.

David Munn, March 2005
chair

Close up of wide chairs.

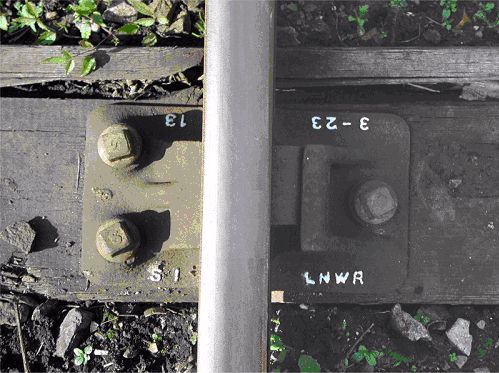

LNWR standard S1 chair.

David Munn, March 2005
chair

Joint with 10" sleepers and standard chairs.

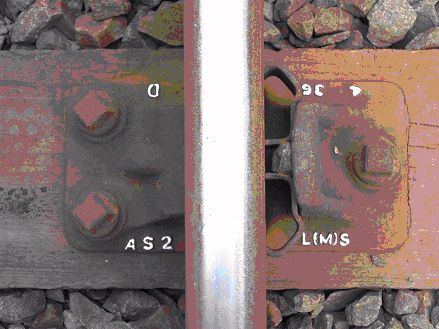

LMS railway AS2 chair a slightly narrower version of the standard AS1 chair.

David Munn, March 2005
chair

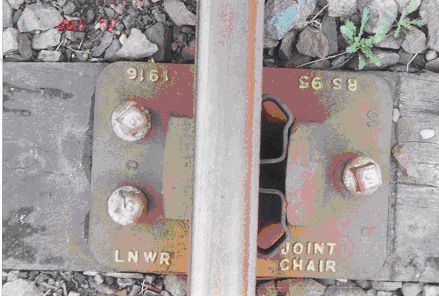

Taken at Old Oak Depot open day on 5/8/00, the pics below show round bar tie bars on a GWR 15' loose heel switch. Also chairing in tandem turnouts and a few odd chairs. LNWR BH joint chair company version of the later AS1J standard chair.

David Munn, March 2005
chair

General view of turnout with 15' loose heel switches, note joggles on both stock rails.

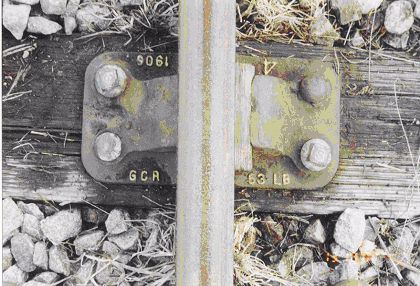

Great Central Railway Bullhead chair.

David Munn, March 2005
chair

Switches showing round tie bars, note front bar extended through holes in the stock rails to prevent the switches lifting.

Midland Railway Bullhead chair.

David Munn, March 2005
chair

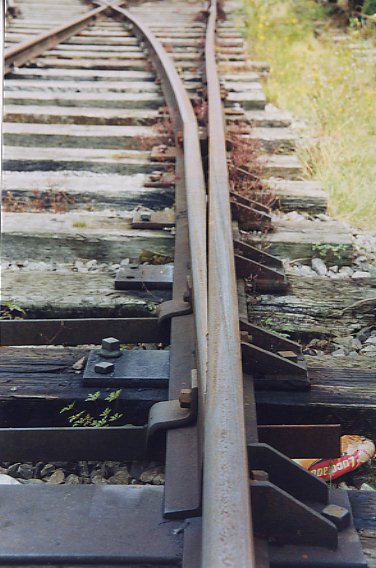

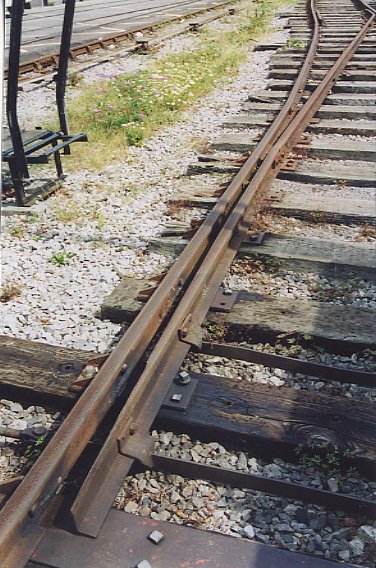

Open switch detail

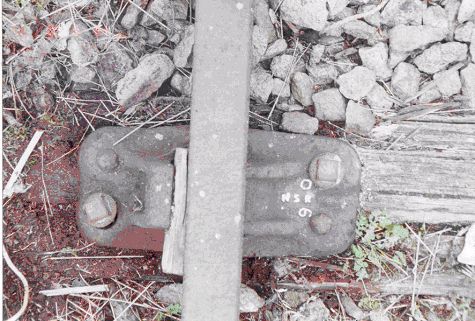

North Staffordshire Railway BH chair.

David Munn, March 2005
chair

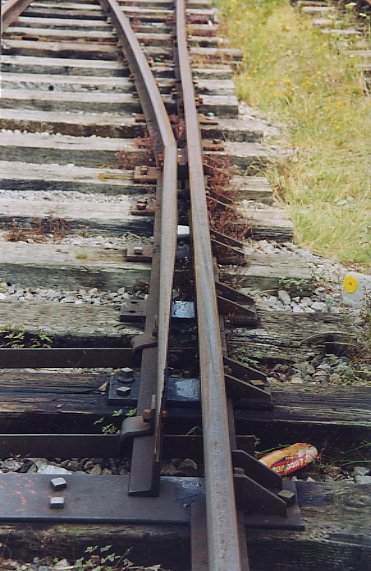

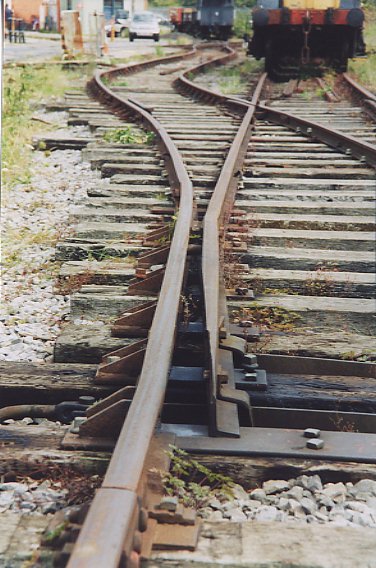

Closed switch detail




Heel joint showing   tight and loose heel chairs.



images/heel-2s.jpg (6872 bytes) Keith Norgrove, August 2000.

Use of bridge chairs under closure rails, its not only modellers have trouble fitting the chairs on the timber.

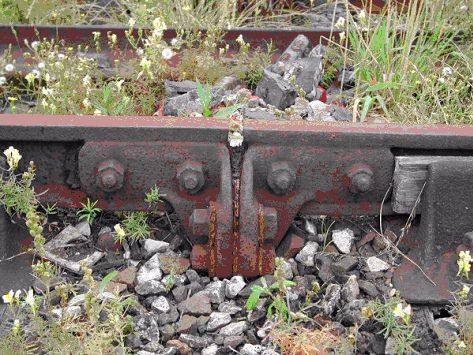

Elephant ear insulated rail joint.

David Munn, March 2005
Insulated joint

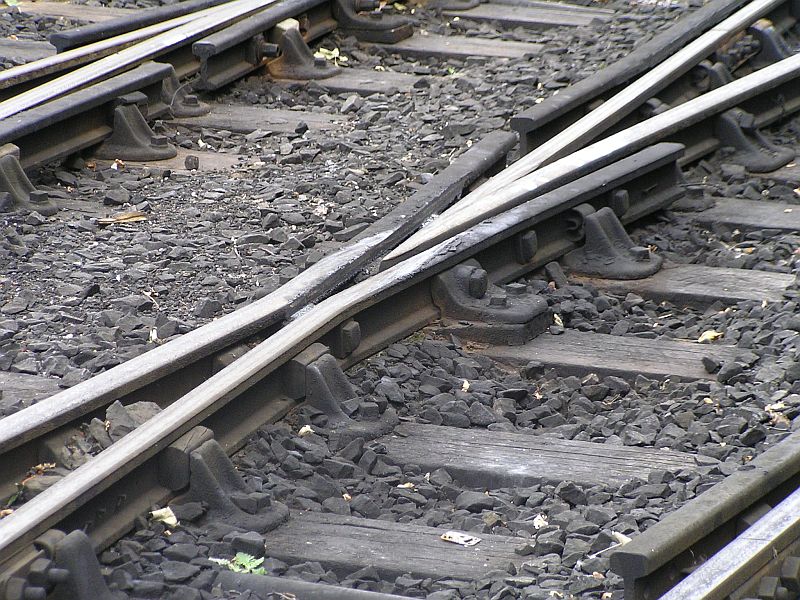

Shows use of bolted half chairs in tandem turnout where normal or bridge chairs won't fit.

Rod Cameron, 2007

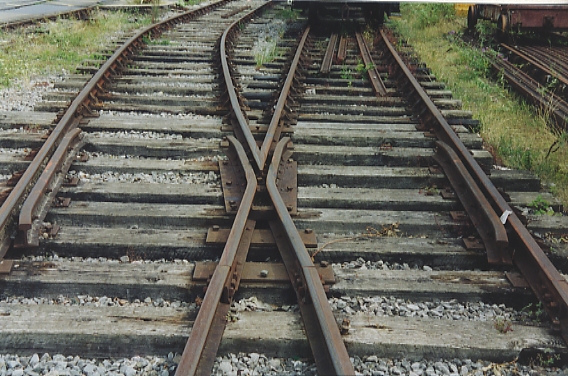

Crossing at Bridgenorth
Crossing at Bridgenorth 2007

More bolted half chairs and a special wing rail.

Suspension test joint.
chair

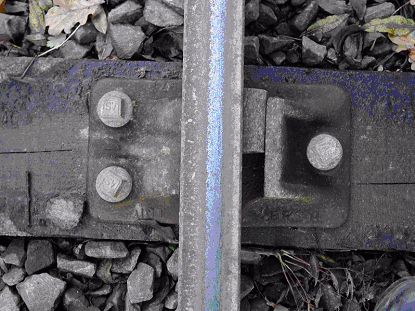

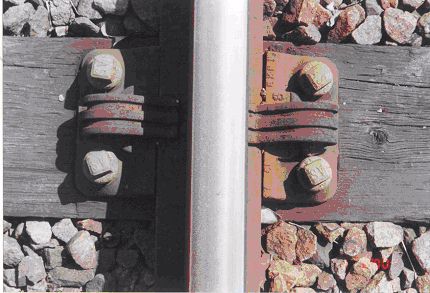

2 - bolt chairs, fitted with old keys and new spring steel keys where the timber one has fallen out in bits.

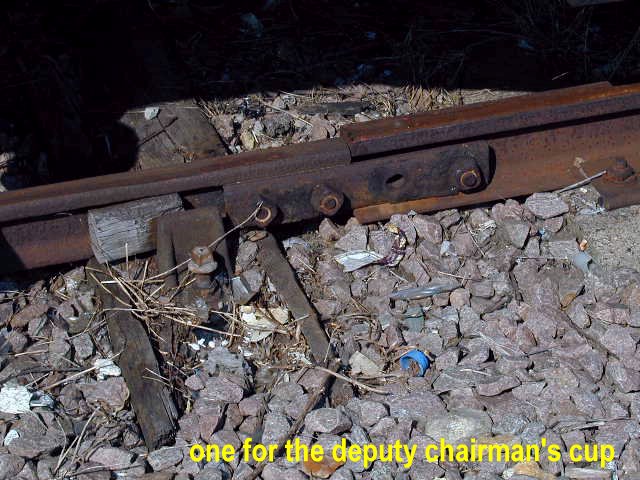

So your tiny drill broke, just leave it in, that's what the real platelayers do.




And a 3 - bolt chair for the LMS fans.



Drawing of the BS 95R Bullhead rail section.

   Flatbottom track

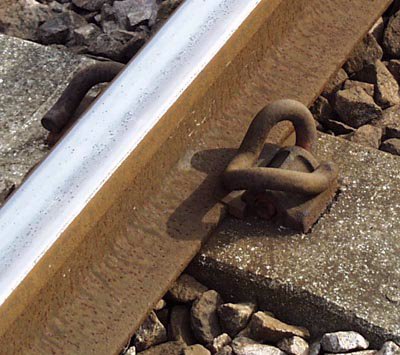

Pandrol clip with cast-in shoulder on concrete sleeper.

BR1 baseplate for use with FB rail fitted with elastic spikes.

David Munn, March 2005
baseplate

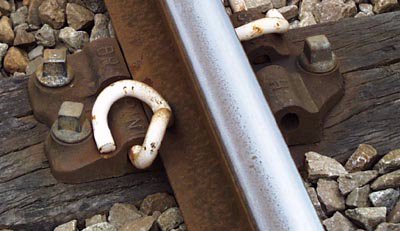

Pandrol clip with cast baseplate on timber sleeper.

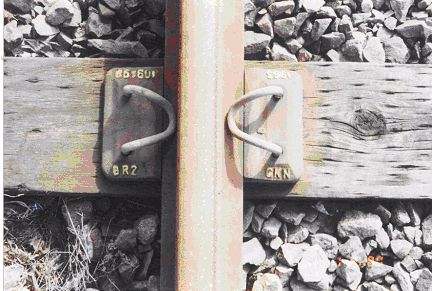

BR2 baseplate with Macbeth spikes.

David Munn, March 2005
baseplate

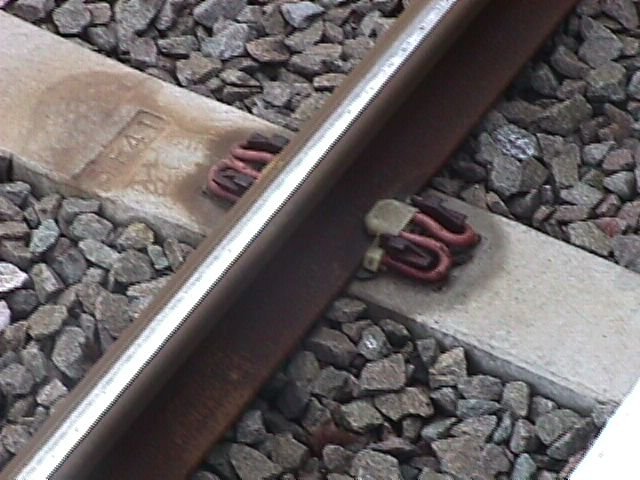

Pandrol "Fastclip" on concrete sleeper. These are used with the recent high strength sleepers for 113lb rail and also for the UIC60 rail introduced last year for main line renewals.

BR1 baseplate wrongly fitted with Macbeth spikes.

David Munn, March 2005
baseplate

Pandrol clip with cast baseplate on timber sleeper.

Very early ‘BR1’ baseplate marked for use with the original 113lb FB rail section.

David Munn, March 2005
baseplate

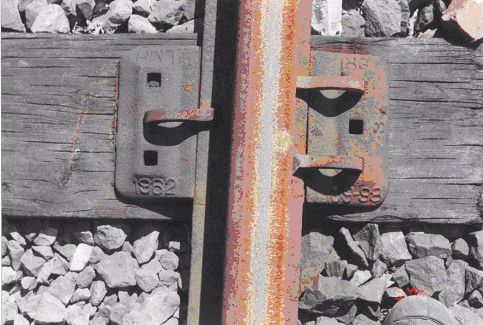

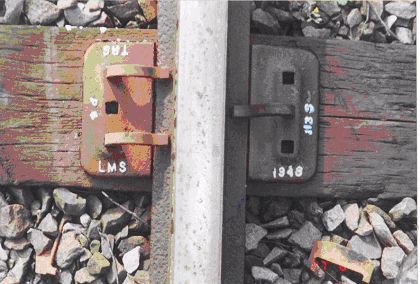

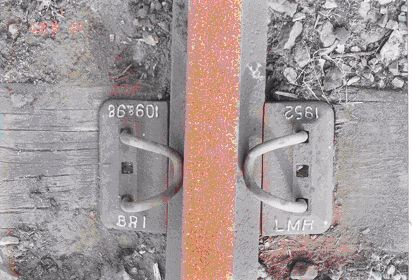

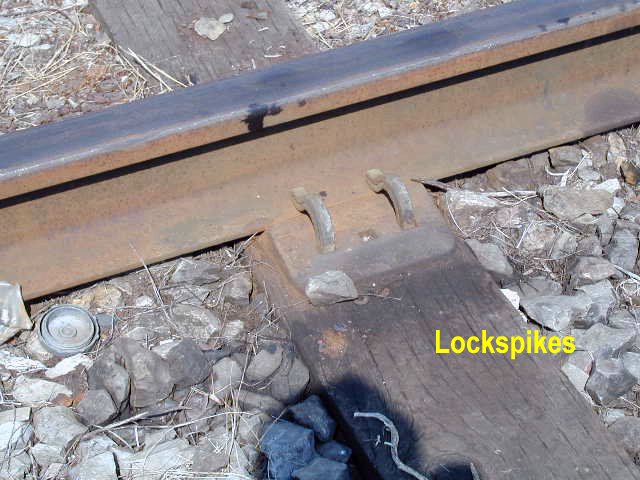

Lockspikes used with cast baseplate, 109lb rail dated 1958

Early type Mills baseplate.

David Munn, March 2005
baseplate

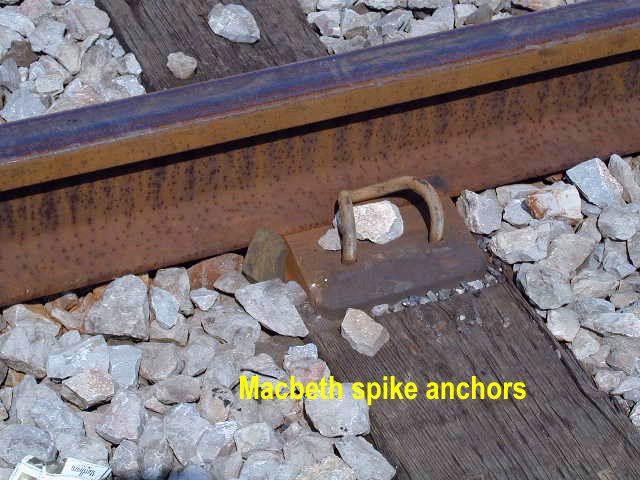

Macbeth spike anchors used with cast baseplate

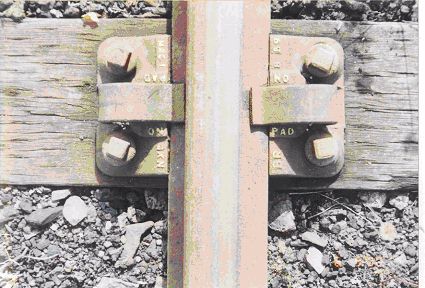

Standard Mills CR3 baseplate.

David Munn, March 2005
baseplate

This ones for the dcc, a nice step joint, and a really heavily weathered sleeper.

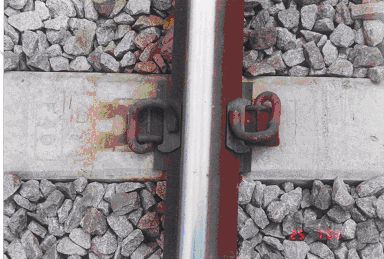

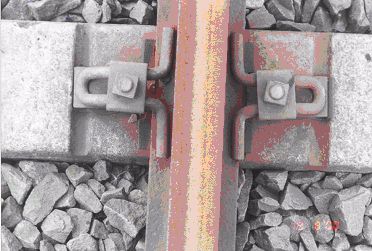

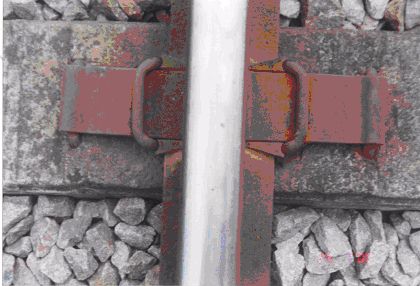

BJB clips on an F10 concrete sleeper, this is a rather tired example fitted with a pad designed for a Pandrol fitted F27 sleeper. The two arms of the clip would also have been fitted with insulating sleeves when it was new. On curves the flat plate under the clip sometimes broke out the concrete on the rear side of the locating groove. So some sleepers were retro-fitted with much wider plates.
David Munn, March 2005
clip
mills-clips.jpg (7077 bytes) December 2002, thanks to the Devils Guide

Mills Clip, Pandrol Clip and SHC Clip, (these photographs are copyright of the Devils Guide).

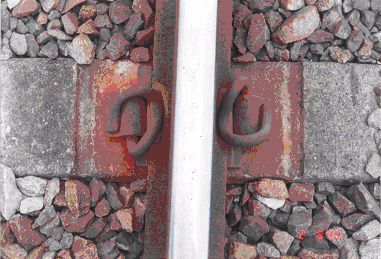

F10 sleeper converted to use Pandrol fastenings by epoxy gluing the housings into the hole originally used by the BJB screw and its insert plug. This was done both on site and in shops, site sleepers are sometimes seen converted on one side only.
David Munn, March 2005


clip

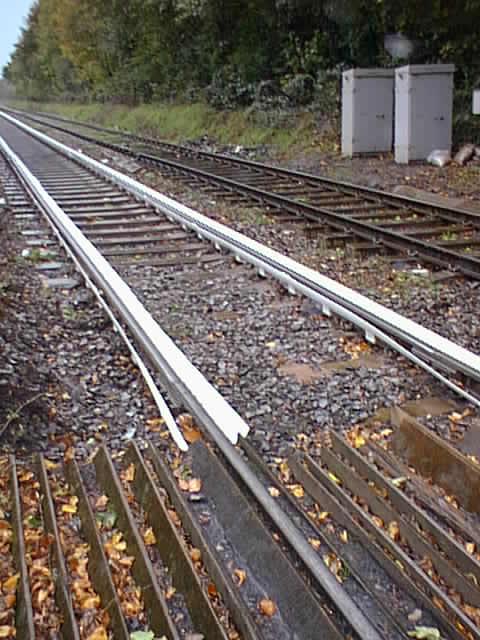

Leaf guards, in this case on the NIR

F19 SHC sleeper with the original square clips, there is a later version called a fish or swallow tail where the outer end of the clip tapers to a point. The end resting on the rail having two matching prongs. This saved metal and cost but made the clips very difficult to remove.
David Munn, March 2005
clip

Leaf guards, in this case on the NIR

F40 concrete sleeper with e1809 Pandrol clips and glass reinforced nylons.

David Munn, March 2005
clip


Richard Spratt,  August 2004

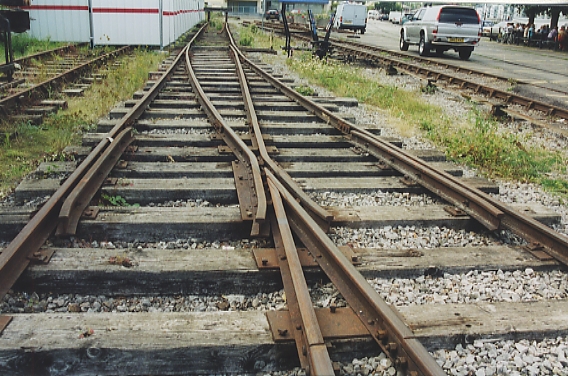

Industrial pivot heel switches, Bristol Docks

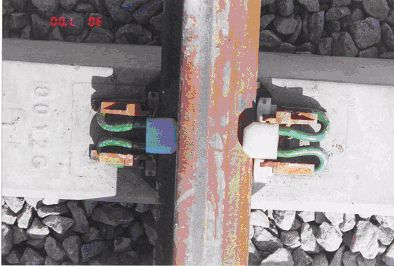

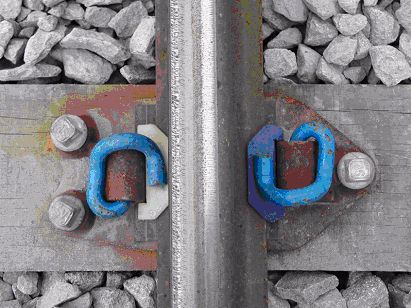

G44 concrete sleeper fitted with Pandrol Fasclips, the green fastclips can be used with both UIC 60 and 113A rail, use white or white and green nylons for UIC60. Or blue and black nylons for 113A. Red Fastclips are used on F41 sleepers with white nylons and are for 113A rail only. (Purple = galvanised green, grey = galvanised red)
David Munn, March 2005
clip

Richard Spratt,  August 2004

Industrial common crossing, Bristol Docks



NRS1 baseplate will take both 113A and UIC60 rail the size difference being taken up by the nylons. Use two F40 style GR nylons for UIC 60, or red and yellow nylons (originally blue and white were used) for 113A section rail. With both rail sections type e 2007 Pandrol clips are used. Note texture on railhead left by rail grinding machine.
David Munn, March 2005
clips

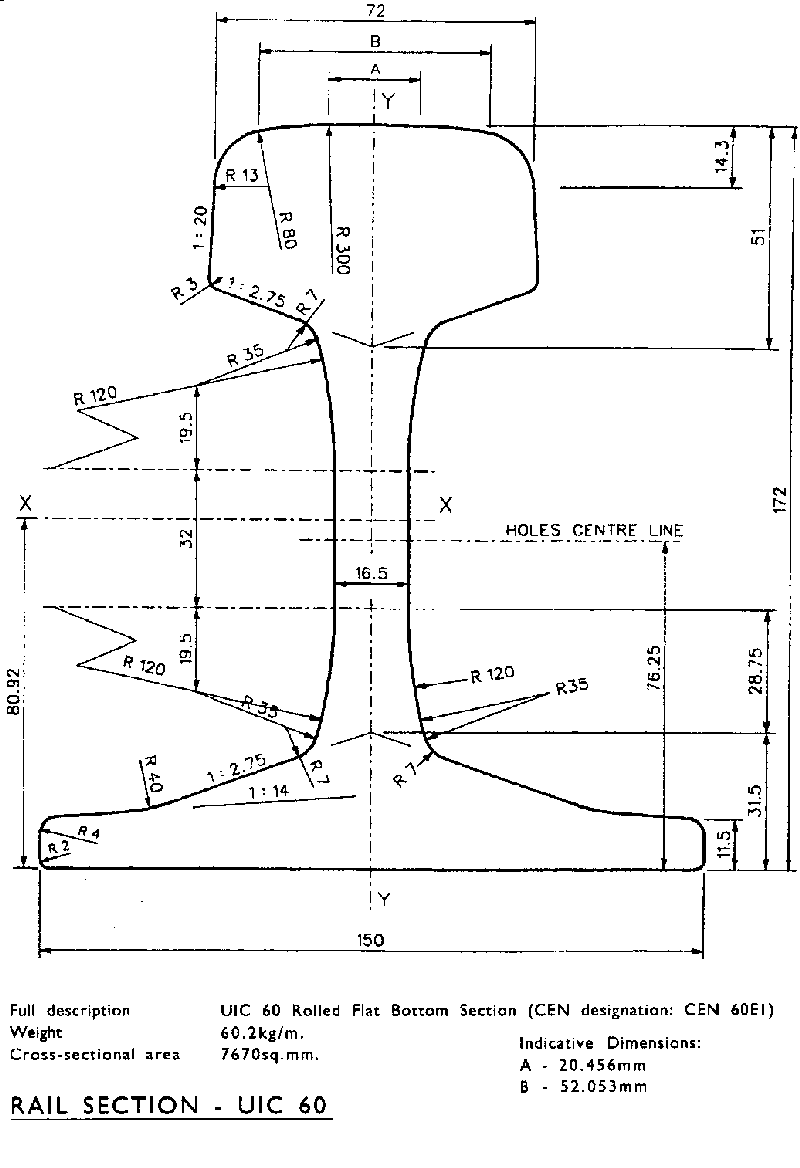

Drawings of BS 113 and UIC 60 Flatbottom rails
