Class 20 rewheeling.

Updated: 19 January 2009

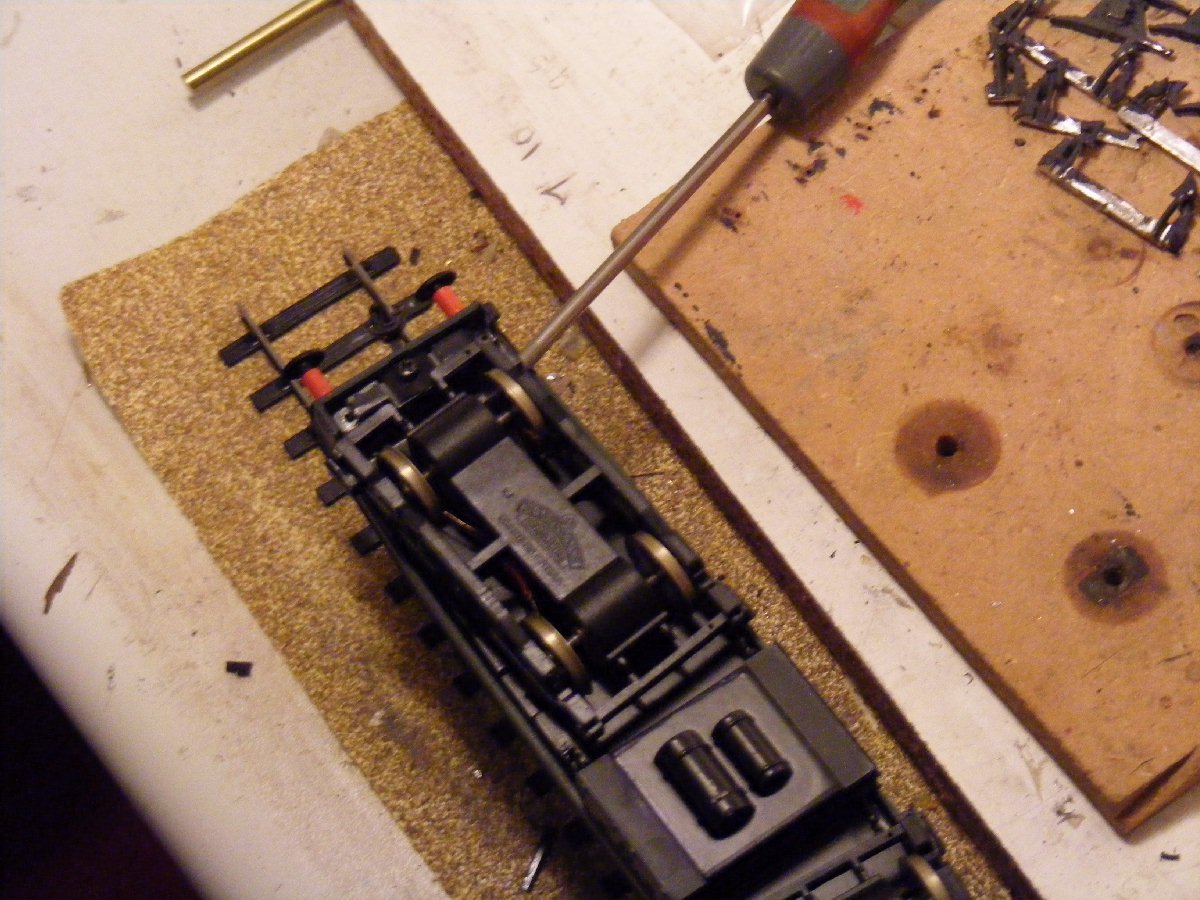

A screwdriver can be slipped in behind the clip at the top front of the bogie frame.
Lever off with screwdriver

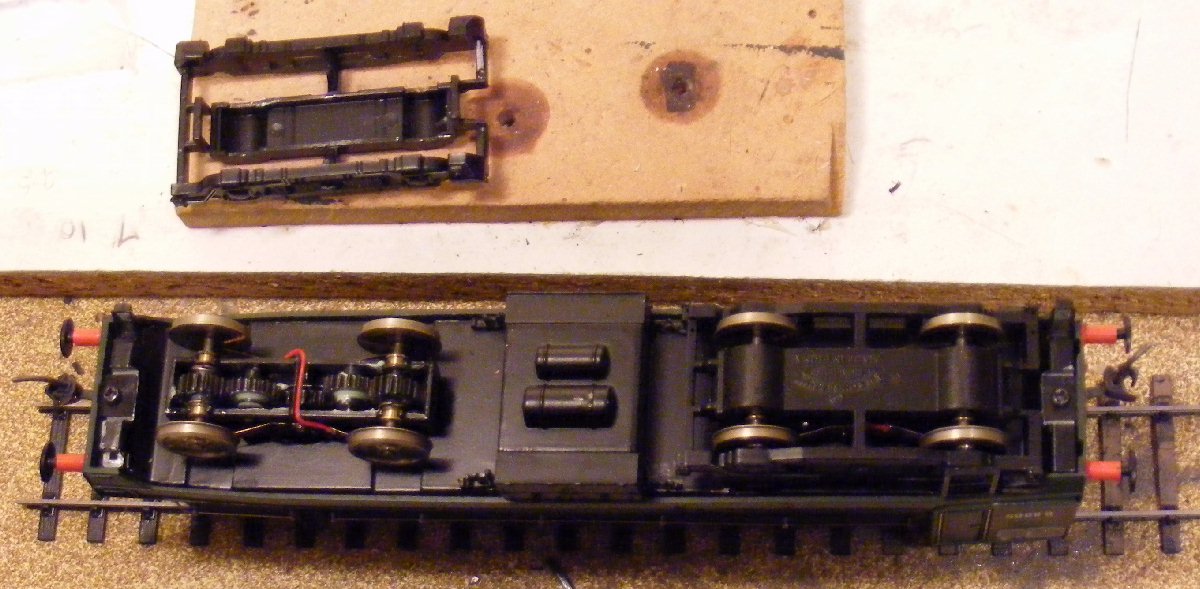

frame removed, clips can be seen on the frame

one bogie frame removed

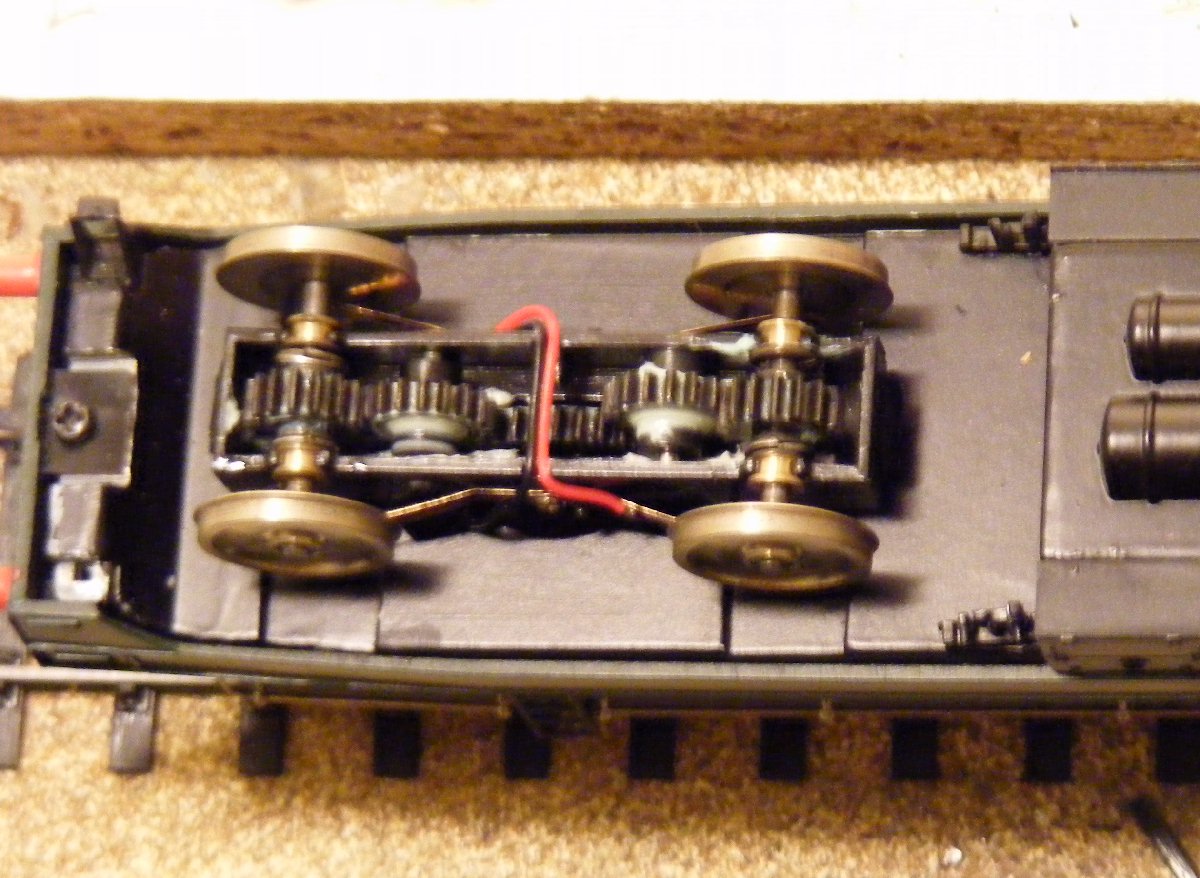

Wheels are Branchlines, makes tweaking the pickups easier, washer between the bearings and the gears keep the wheelsets central.

Bogie detail
